MS Product Line
Monosem MS planters plant both raw, encrusted, and pelleted seeds, reducing seed cost and thinning labor. The MS metering unit has been specially designed for small seed crops. The meter housing is made out of brass and has a cast aluminum cover with an adjustable fiber seal to keep a tight fit. The seed is picked up by vacuum at a low point in the cover allowing the meter to plant even at a very low seed level. A shoe opener creates an extremely low seed drop to maintain proper seed spacing. The front gauge wheel provides consistent seed depth control while the intermediate press wheel and rear press wheel provide proper seed-to-soil contact for optimal emergence. The simplicity of adjustments make planting multiple different crops quick and easy.
MS Version A
Quick adjustable clod remover
Self-cleaning rubber front press wheel
– Steel wheel also available (disc opener available)
Narrow shoe (other options available)
Stainless steel wheel (other options available)
Optional intermediate press wheel with scraper
Depth control knob
Standard up-pressure spring
1. Control Window
2. Seed Meter Cover
3. Seed Ejector
4. Seed Singulator
5. Seed Disc
6. Meter Housing
7. Secondary Air Cleanout
Special Features & Options
The Microsem system with auger ensures a regular metering of micro-granules. Its simple design enables an easy and reliable use. Multi-purpose, the Microsem is compatible with the majority of micro-granulate products on the market (insecticides, helicides, etc.).

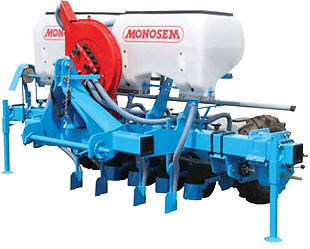

For localized fertilizing during planting, Monosem offers hoppers of different capacities and a number of outlets suited to your planter.
Installation and integration of custom designed drip tape irrigation installation systems
Seed Monitoring and Hydraulic Planter Controls
Installation and integration of precision seed monitoring, hydraulic drives, section control with control through John Deere Seed Star 2 or ISOBus
